Description

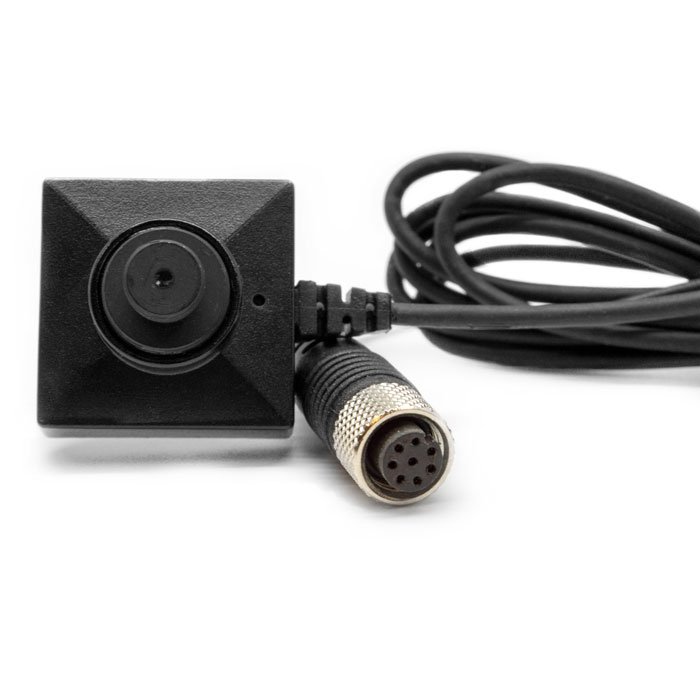

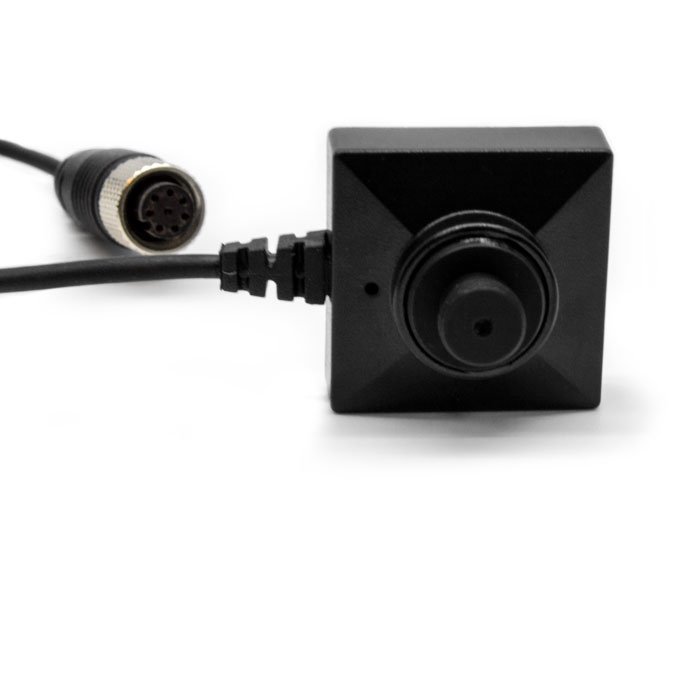

The CMD-BU20LX is a low light camera providing up to 1080P resolution with a wide dynamic range of light technology to provide the most accurate lighting adjustments for capturing clear visiable footage in any situation. Hiding in plain sight is easy with this camera camera system. Simply install one of the button or screw lens covers to blend this high quality low light button camera into its natural environment. Whether the investigation is on-the-move or stationary, the quality of the footage is guarunteed with the CMD-BU20LX.

CMD-BU20LX features the ultra-secure connection which mean this camera is only compatible with the PV-1000EVO3. This model DVR allows you to select the video resolution up to 1080P. Playback the videofeed on the DVR or view live or remote playback with the PV Cam Viewer app. If WiFi is available where the camera is being set up, using the iP wireless connection allows the feed to be relayed anytime and anywhere a wireless or data connection is available on the paired device.

  • Low Light Button Camera
  • Compatible wit HPV-1000EVO3

Specifications

  • CMOS Camera
  • Resolution: Up to 1080P
  • Supports NTSC or PAL Video
  • Sensitivity: .03 LUX @ F.2.0 50 IRE
  • Image Sensor: Progressive 1/2.8" Sony CMOS
  • Angle of View: 78.2°
  • Video Output: BT656 Data
  • Audio Output: 2 Vp-p (MAX) 10 KHz ohms Impedance
  • Microphone: 36 db (MAX)
  • Power Supply: DC 3.3V
  • Power Supply Current: 200mA
  • Operating Temp: 14°F-140°F
  • Storage Temp: -22°F-176°F
  • Dimensions: 1" x 1" x 25" | Cord: 4.5 ft
  • Weight: .35 oz.

Resolution

  • 1080p

Features

  • Wearable Camera

Shipping Dimensions

  • 6" x 5" x 2.5"

Shipping Weight

  • 0.5 Lb

Downloads

CMD-BU20LX Manual

Download Now

CMD-BU20LX Specification Sheet

Download Now

Included

  • Button Camera
  • Button Accessories
